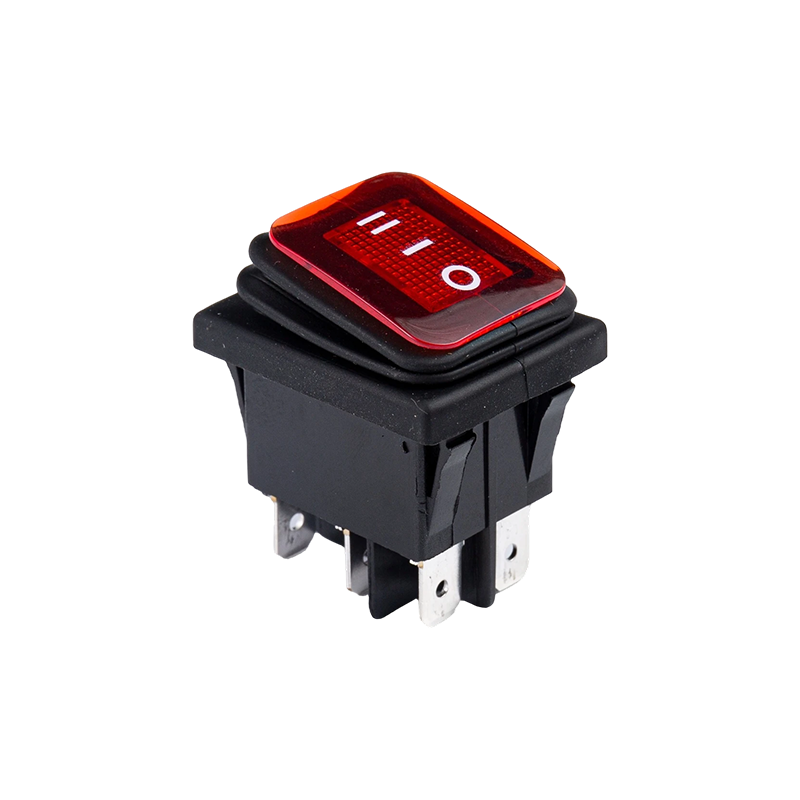

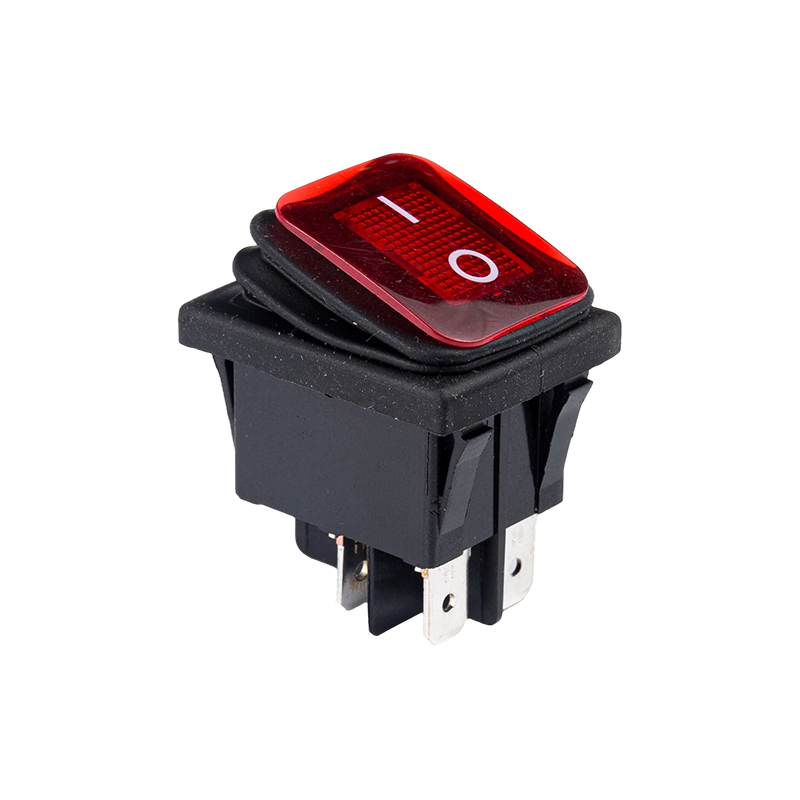

R11-82 (Tower defense) Rocker Switch

1. Product Category: Rocker Switch

2. Model: R11‑821 + Tower‑Type Waterproof Cap

3. Product Description:
Fitted with a tower‑type waterproof cap, it reaches an IP55 dust‑proof and waterproof rating to cope with various harsh indoor and outdoor working conditions.

Multiple structural options are available, including protective caps or internal dust‑proof structures to meet different protection requirements. The indicator-light version is optional for clear ON/OFF status display, improving operation convenience and equipment safety. Featuring robust housing and complete AC & DC specifications, this switch delivers stable switching performance for long‑term continuous operation.

It is widely applied in power tools, garden machinery, and cleaning equipment: table saws, bench grinders, electric lawn mowers, branch shredders, high‑pressure washers, wet/dry vacuum cleaners. It is also suitable for household appliances, instruments, office equipment, industrial machinery, control panels, and all kinds of outdoor electrical devices. Customization of style, current rating, and protection grade is supported for different project demands.

4. Safety Certification & Technical Data:
This product has obtained a full set of international safety certifications, including UL, TUV, S, KC, CE, and CQC.

UL Certification Parameters
16(12)A  125/250VAC  T125  5E4
16A  125/250VAC  T125  5E4
16(14)A  125/250VAC  T125  5E4
16A  125/250VAC  T125  5E4
10A  36VDC   T125  1E4
16/20/25A  36VDC   T125  1E4
10/16/20A  48VDC   T125  1E4
16(12)A  125/250VAC  T125  5E4

TUV Certification Parameters
18(16)A  125VAC  T125  5E4
16(16)A  125VAC  T125  5E4
14(14)A  125VAC  T125  5E4
10/16A  25VDC   T125  5E4
10 A  25 / 36 / 48 VDC  T125  5E4
16 (16) A  125/250 VAC  T125  1E4
16 (14) A  125/250 VAC  T125  1E4
16(12)A  125/250VAC  T125  5E4
14(14)A  125/250VAC  T125  5E4
12(12)A  125/250VAC  T125  5E4
16(8)A   125/250VAC  T125  5E4
16(14)A  125/250VAC  T125  5E4  IP55

S Certification Parameters
16(8)A  250VAC  T125  1E4
12(8)A  250VAC  T125  5E4
16(8)A  250VAC  T125  1E4
12(12)A  250VAC  T125  5E4
16(8)A  250VAC  T125  5E4

KC Certification Parameters
12(12)A  250VAC  T125  5E4

CE Certification Parameters
16(8)A  250VAC  T125  1E4
12(8)A  250VAC  T125  5E4

CQC Certification Parameters
12(12)A  250VAC  T125  5E4
16(12)A  250VAC  T125/55  1E4
12(12)A  250VAC  T125/55  1E4
16(8)A  250VAC  T125/55  1E4
